Click to zoom
- Compact NVIDIA® Jetson AGX Xavier™ supports workstation-grade up to 32 TOPS AI performance with rich AI tools and workflows
- NVIDIA Volta architecture with 512 NVIDIA® CUDA® cores and 64 Tensor cores
- DC 9V to 50V wide range power input, Ignition Power Control
- 5 GigE LAN with 4 PoE+, 4 USB 3.0, 2 Digital Display
- Supports 8 GMSL 1/GMSL 2 automotive cameras with Fakra-Z connectors
- 2 Isolated CAN Bus support Flexible Data-rate, 2 COM RS-232/422/485
- M.2 supports 5G/4G/LTE/WiFi/BT/GPS

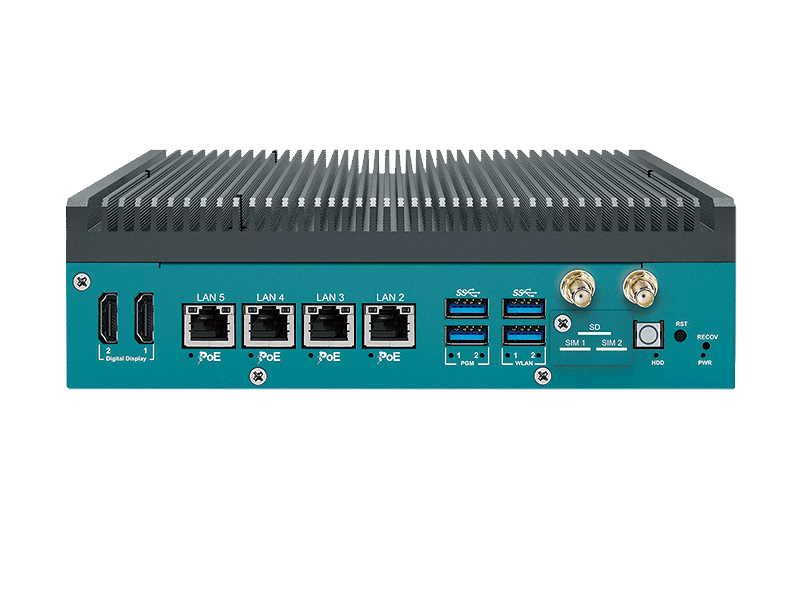

EAC-3000 is powered by NVIDIA® Jetson AGX Xavier™ to deliver workstation-grade performance with up to 32 TOPS of AI performance and rich AI tools and workflows. Featuring advanced NVIDIA Volta GPU with 512 NVIDA® CUDA® Core and 64 Tensor Cores, Vecow EAC-3000 helps accelerate the implementation of AI applications at the edge. With GMSL technology support over FAKRA-Z connectors and support for an extended operating temperature from -20 °C to 70°C, 9V to 50V wide range DC, Vecow EAC-3000 is ideal to meet the requirements of automotive applications and any AIoT applications.
Model | Platform | RAM | LAN | PoE | USB 3.0 | M.2 | Serial | SIM | CAN | GMSL | |
|---|---|---|---|---|---|---|---|---|---|---|---|
EAC-3000-R64 |
| Jetson AGX Xavier | 64GB | 5 | 4 | 4 | 3 | 2 | 2 | 2 | 8 |
EAC-3000-R32 |
| Jetson AGX Xavier | 32GB | 5 | 4 | 4 | 3 | 2 | 2 | 2 | 8 |
| System | |
| CPU | 8-core NVIDIA Carmel ARM® v8.2 64-bit CPU |
| GPU | NVIDIA Volta architecture with 512 NVIDIA® CUDA® cores and 64 Tensor cores |
| DL Accelerator | 2x NVDLA Engines |
| Memory | 1 LPDDR4x DRAM, up to 64GB |
| OS | Linux Ubuntu 18.04 with JetPack |
| I/O Interface | |
| USB | 4 USB 3.0 Type A |
| Serial | 2 COM RS-232/422/485 |
| CAN Bus | 2 Isolated CAN Bus support CAN FD |
| Micro USB |
- 1 Micro USB console debug port
- 1 Micro USB OS flash port
|
| Button |
- 1 Power Button
- 1 Force Recovery Button
- 1 Reset Button
|
| LED | Power, HDD, 2 WLAN, 2 User Programming |
| SIM | 2 SIM Card Socket |
| Antenna | 6 Antenna for WiFi/4G/5G/LTE/GPRS/UMTS |
| Expansion | |
| M.2 |
- 1 M.2 Key B Socket (3042/3052)
- 1 M.2 Key E Socket (2230)
|
| Graphics | |
| Interface | 2 Digital Display, up to 4Kx2K @30Hz |
| Video Encode |
- HEVC: Up to 4x4K @60, 8x4K @30, 16x1080p @60, 32x1080p @30
- H.264: Up to 4x4K @60, 8x4K @30, 14x1080p @60, 30x1080p @30
|
| Video Decode |
- HEVC: 2x8K @30, 6x4K @60, 12x4K@30, 26x1080p @60, 52x1080p @30
- H.264: 4x4K @60, 8x4K @30, 16x1080p @60, 32x1080p @30
|
| Camera | |
| GMSL | 8 Fakra-Z connectors for GMSL 1/GMSL 2 automotive cameras |
| Storage | |
| M.2 | 1 M.2 Key M Socket (2280) |
| eMMC | 1 eMMC 5.1, 32GB |
| SD | 1 Micro SD (External) |
| Ethernet | |
| LAN 1 | 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector |
| PoE | |
| LAN 2 | IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector |
| LAN 3 | IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector |
| LAN 4 | IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector |
| LAN 5 | IEEE 802.3at (25.5W/48V) GigE PoE+ LAN, RJ45 Connector |
| Power | |
| Power Input | DC 9V to 50V |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Remote Switch Terminal Block |
| Mechanical | |
| Dimensions (W x L x H) | 212.6mm x 149.0mm x 60.4mm (8.37" x 5.87" x 2.38") |
| Weight | 2.4 kg (5.29lb) |
| Mounting |
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
|
| Environment | |
| Operating Temperature |
30W TDP Mode : -20°C to 70°C (-4°F to 158°F)
MAX TDP Mode : -20°C to 55°C (-4°F to 131°F)
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 70°C |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
