NEW PRODUCT! RELEASE DATE Q3 2022!

Click to zoom

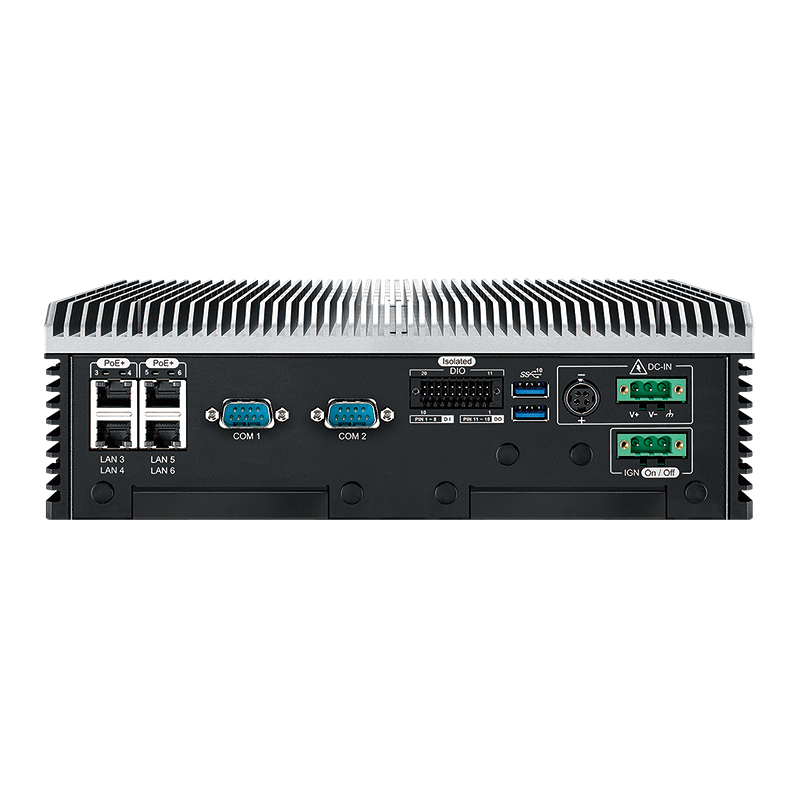

Powered by 12th generation 16-core Intel® Core™ i9/i7/i5/i3 processor (Alder Lake) with Intel® 600 Series chipset, fanless -40°C to 75°C operating temperature, multiple 10G LAN/2.5G LAN/GigE LAN/SIM socket configuration, max 6 USB 3.2 Gen 2 connections supporting up to 10Gbps data rate, outstanding system performance, 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS mobile availability, 9V to 50V power input. Software ignition power control and rugged reliability in harsh environments, all-in-one integrated features, the ECX-3000 Series Fanless Embedded System is your new generation choices for Machine Vision, In-vehicle Computing, Public Security, Factory Automation, Intelligent Transportation System (ITS), Robotic Control, AMR/AGV, Deep Learning, and any Edge AI applications.

Model Variants of ECX-3000

Model

10G LAN

2.5G LAN

2.5G PoE

LAN

COM

M.2

SSD Tray

Isolated DIO

ECX-3000(F)-PoE

NA

5

4

1

4

NA

NA

16

ECX-3000(F)-PoER

NA

5

4

1

4

NA

2

16

ECX-3000(F)-PoES

NA

5

4

1

4

4

NA

16

ECX-3000(F)-4G

NA

3

NA

1

4

NA

NA

16 GPIO

ECX-3000(F)-4R

NA

3

NA

1

4

NA

2

16 GPIO

ECX-3000(F)-2G

NA

1

NA

1

4

NA

NA

16 GPIO

ECX-3000(F)-2R

NA

1

NA

1

4

NA

2

16 GPIO

ECX-3000(F)-2R

NA

8

4

1

2

NA

NA

16

ECX-3025(F)R

NA

8

4

1

2

NA

2

16

ECX-3071X(F)

2

5

4

1

2

NA

NA

16

ECX-3071X(F)R

2

5

4

1

2

NA

2

16

Series

CPU

Cores

GHz

TDP(W)

Intel® Core™

i9-12900E

16

5

65

Intel® Core™

i9-12900TE

16

4.8

35

Intel® Core™

i7-12700E

12

4.8

65

Intel® Core™

i7-12700TE

12

4.7

35

Intel® Core™

i5-12500E

6

4.5

65

Intel® Core™

i5-12500TE

6

4.3

35

Intel® Core™

i3-12100E

4

4.2

65

Intel® Core™

i3-12100TE

4

4

35

System
Processor 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® 600 Series Chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR4 3200MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
OS Windows 10, Linux
I/O Interface
Serial  Up to 4 COM RS-232/422/485
USB 6 USB 3.2 Gen 2
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO (Optional)
LED Power, HDD, PoE, Wireless
SIM Card  2 External SIM Card Sockets
RTC Battery Front-access RTC Battery
Expansion
Mini PCIe 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA
M.2
- 1 M.2 Key B Socket (3042/3052)
- 1 M.2 Key E Socket (2230)
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Graphics Processor Intel® UHD Graphics 770 driven by Intel® Xe Architecture
Interface
- 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @60Hz
- 1 DVI-I : Up to 1920 x 1080 @60Hz
- 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
M.2 1 M.2 Key M Socket (2280, PCIe x4)
Storage Device
- Front-access 2.5" SSD/HDD Tray
- 4 Front-access M.2 Key M SSD Tray (ECX-3000 PoES)
Audio
Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN
LAN 2 Intel® I225 2.5GigE LAN supports TSN
PoE
LAN 3 to LAN 6 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I225
Power
Power Input DC 9V to 50V
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- 4-pin Mini-DIN
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11")
Weight 3.8 kg (8.38 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
Environment
Operating Temperature
35W TDP CPU :
-40°C to 75°C (-40°F to 167°F), Fanless
65W TDP CPU :
-40°C to 55°C (-40°F to 131°F), Fanless
2.5G Series :
-40°C to 70°C (-40°F to 158°F), Fanless
10G  Series :
0°C to 50°C (32°F to 122°F), with Internal Fan
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @75°C
Shock
- IEC 60068-2-27
- SSD : 50G @wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
