- -40°C to 85°C Operating Temperature
- PCI Express® 2.0 compliant, compact size
- 2 high-speed USB 3.0 ports, up to 5Gbps data rate
- USB 3.0 Rev. 1.0 compliant
- Intel® xHCI Rev. 1.0 compliant
- PCI Express x1 Interface
- Supports Window 10, Windows 8.1, Windows 7 and Linux

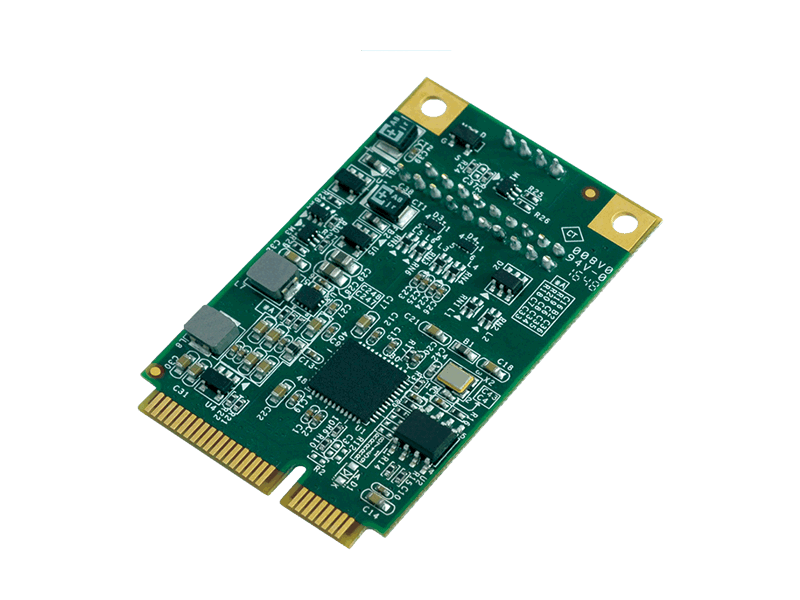

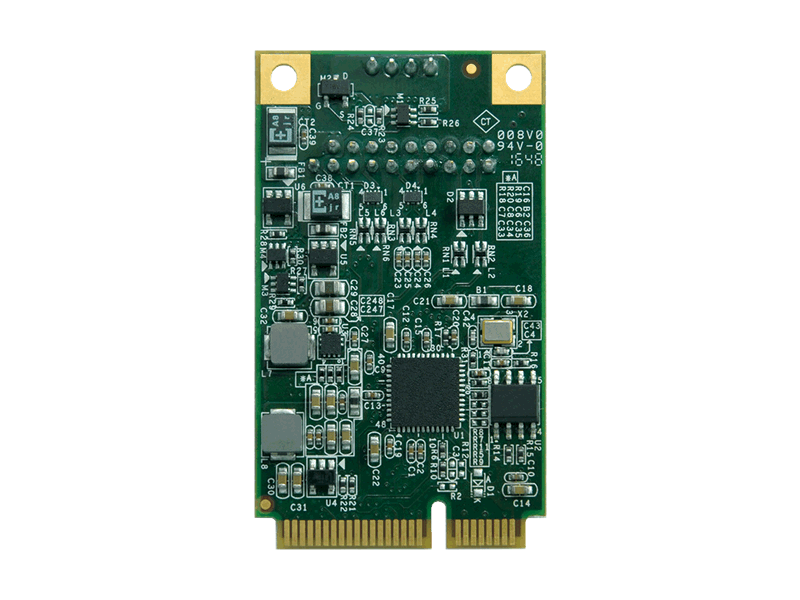

Renesas µPD720202 Mini PCIe 2-port USB Card, PCI Express x1, USB 3.0
| USB | |
| Interface | Mini PCIe |
| Controller | Renesas µPD720202 |
| Standard | USB 3.0 Rev. 1.0 compliant |
| Number of Port | 2 |
| Data Rate | UP to 5Gbps |
| Link Aggregation (LAG) | Present |
| Connector | 19-pin Header |
| Software Support | |
| OS |
Windows 10, Windows 8.1, Windows 7, Linux
|
| Mechanical | |
| Dimensions (W x L) |
- Mini Card : 30mm x 51mm
- Cable Length : 320mm
|
| Weight | 152 g |
| Environment | |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 85°C |
| EMC | CE, FCC |
| Packing List | |
|

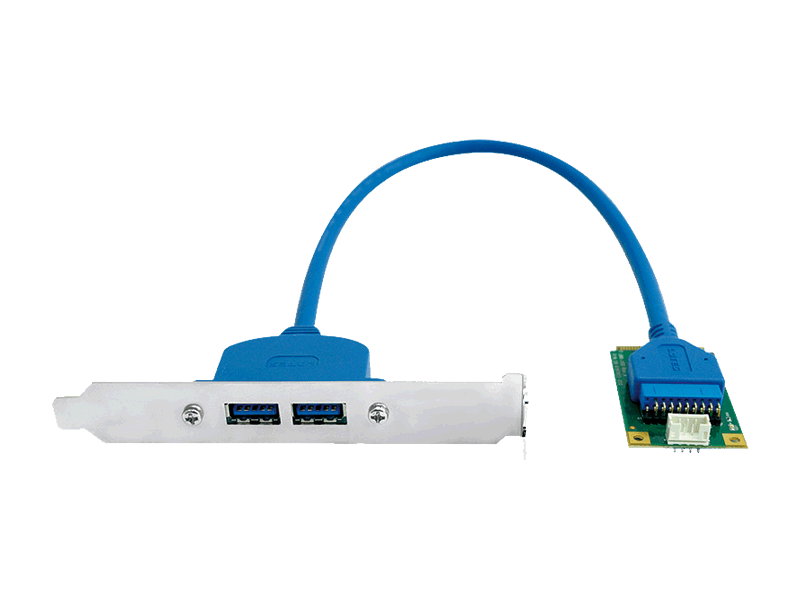

1 UMX-100 Mini PCIe USB Card
|
|
|
1 Cable Set
|
|
|
1 Driver CD
|
|
|
1 Screw Kit
|
|
| 1 Bracket | |
| Attachment | Size |
|---|---|
 UMX-100 Data Sheet.pdf | 1.07 MB |
 UMX-100 Series EMI test Report.zip | 2.96 MB |
