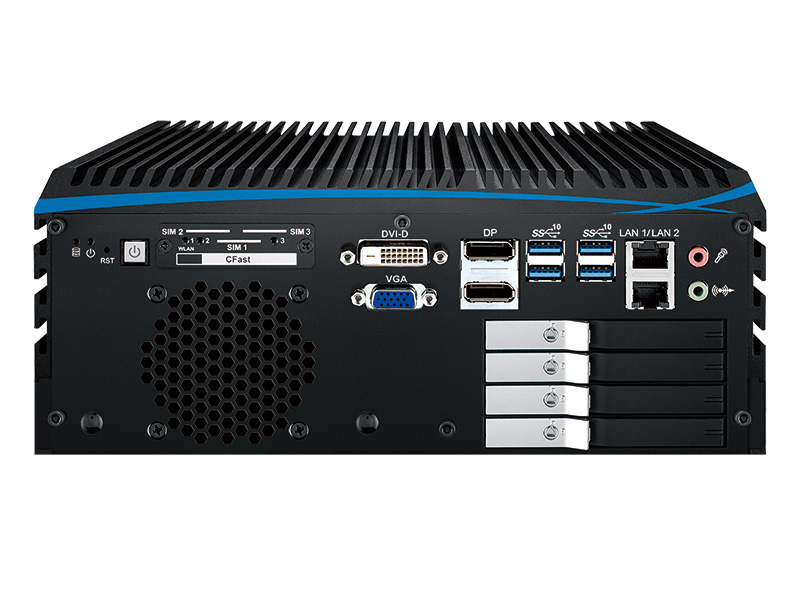

Click to zoom
- 8 Cores 9th/8th Gen Intel® Xeon®/Core™
- 2 DDR4 2666MHz Memory, up to 64GB (ECC/Non-ECC)
- NVIDIA® RTX Turing™ GPU architecture
- Max 7 independent displays, up to 8K Resolution
- Multiple external USB 3.1 Gen 2 10Gbps data transfer
- 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
- 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
- Storage : 4 2.5" SSD Tray, 1 CFast, 1 M.2, 4 SATA III
- Expansion : 2 Mini PCIe/mSATA, 1 M.2
- 3 External SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
- 24V to 36V DC Power Input with 80V Surge Protection
- Configurable Ignition Power Control
Workstation-grade 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake) AI Computing System with Intel® C246 & NVIDIA® GeForce RTX™ Graphics, NVIDIA Turing™ architecture, 7 displays, 8K resolution, 6 GigE LAN, 4 PoE+, 6 10G USB 3.1, 4 COM RS-232/422/485, 3 SIM, 4 Front-access 2.5" SSD Tray, 2 Mini PCie/mSATA, M.2, 32 Isolated DIO, High Performance, Flexible,
Model | LAN | PoE | SSD Trays | USB 3.1 | COM | SIM | Isolated DIO | GPIO |
|---|---|---|---|---|---|---|---|---|
ECX-1400-PEG | 6 | 4 | 4 | 6 | 4 | 3 | 32 | NA |
ECX-1300-PEG | 2 | NA | 4 | 6 | 4 | 3 | NA | 16 |
| System | |
| Processor | 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S) |
| Chipset | Intel® C246 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC) |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB |
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal) |
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 3 External SIM sockets |
| Expansion | |
| Mini PCIe | 2 Full-size for PCIe/USB/external SIM/mSATA |
| M.2 | 1 M.2 Key E socket |
| Graphics | |
| Graphics Processor |
Intel® UHD Graphics 630
Independent Graphics：By request
|
| Interface |
Up to 7 independent displays：
- 1 VGA : Up to 1920 x 1200 @60Hz
- 1 DVI : Up to 1920 x 1200 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
- By requested PEG
|
| Storage | |
| SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| mSATA | 2 SATA III (Mini PCIe type, 6Gbps) |
| M.2 | 1 M.2 Key B socket |
| Storage Device |
- 1 CFast socket, Push-in/Push-out ejector
- 4 Front-access 2.5" SSD/HDD trays
|
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0 |
| LAN 2 | Intel® I210 GigE LAN |
| PoE | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| Power | |
| Power Input | 24V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension | 260mm x 215mm x 104.1mm (10.24" x 8.46" x 4.10") |
| Weight | 5.5 kg (12.13 lb) |
| Mounting |
- Wallmount by mounting bracket
- DIN Rail mount (optional)
|
| Environment | |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 45°C |
| Shock/Vibration |
- IEC 61373：2010
- Railway Applications：Rolling Stock Equipments, Shock and Vibration Tests
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
| Attachment | Size |
|---|---|
 ECX-1400-PEG Data Sheet | 1.58 MB |
