- 8-core 11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S) running with Intel® W580 chipset, up to 19% CPU productivity improved 1500W power budget supports max dual 750W NVIDIA® Tesla®/Quadro®/GeForce® or AMD Radeon™ 3-slot graphics card
- Expansion : 2 PCIe x8 Gen4, 3 PCIe x4, 2 Mini PCIe, 1 M.2 Key E, 1 M.2 Key B
- Multiple 5G/WiFi 6/4G/LTE/GPRS/UMTS, TPM 2.0, vPRO
- DC 9V to 55V Power Input, Software Ignition Control
- Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

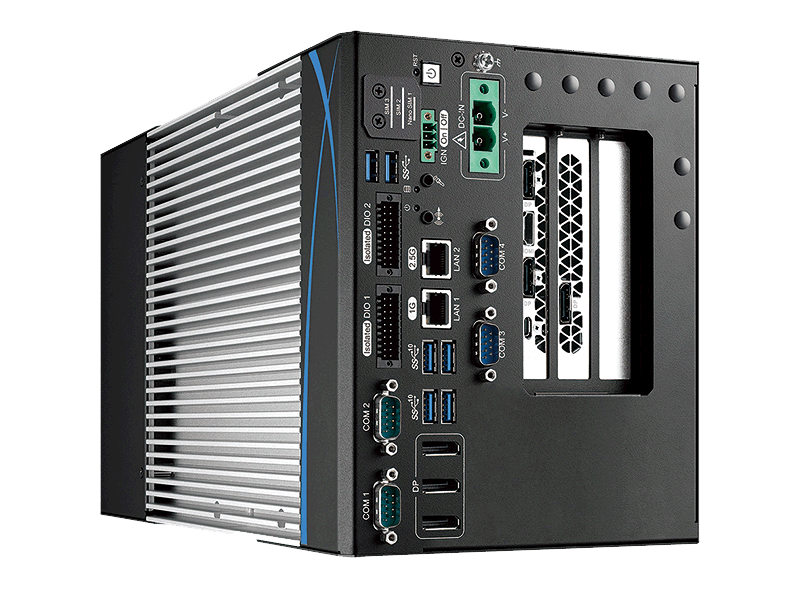

Featuring workstation-grade platform: powered by 11th Generation Intel® Xeon®/Core™ i7/i5 processor (Rocket Lake-S) and running with W580 chipset, RCX-2000 PEG delivers high-performance computing capability with up to 19% CPU productivity improved. The system is equipped with PCIe x16 slot that supports max 750W power for NVIDIA® or AMD graphics engine and allows for scalability of expansion with 5 PCIe, 2 Mini PCIe, 4 M.2. RCX-2000 supports 4 DDR4 memory up to 128GB and features max. 7 independent displays with 8K resolution. The brand new RCX-2000 PEG offers a variety of connectivity and supports 9V to 55V DC-in to meet industrial requirements and is ideally suited for High-Speed AIO, 3D Mapping, Rolling Stock and any AIoT/Industry 4.0 applications.
Model Number | 1G Ethernet | 2.5G Ethernet | SSD Trays | USB 3.2 | PCIe x8 Gen4 | PCIe x4 | Isolated DIO | M.2 | |
|---|---|---|---|---|---|---|---|---|---|
RCX-2750R-PEG |
| 1 | 1 | 4 | 6 | 2 | 3 | 32 | 3 |
RCX-2750-PEG |
| 1 | 1 | NA | 6 | 2 | 3 | 32 | 3 |
RCX-2330R-PEG |
| 1 | 1 | 4 | 6 | 1 | 2 | 32 | 3 |
RCX-2330-PEG |
| 1 | 1 | NA | 6 | 1 | 2 | 32 | 3 |
| System | |
| Processor | 11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S) |
| Chipset | Intel® W580 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 4 DDR4 3200MHz SO-DIMM, up to 128GB (ECC/Non-ECC) |
| OS | Windows 10, Linux |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 |
| USB |
-6 USB 3.2 Gen2 (External)
-1 USB 2.0 (Internal)
|
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | HDD, Power |
| SIM Card | 3 External SIM Card Socket |
| Expansion | |
| Mini PCIe | 2 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA |
| PCIe |
5 PCIe x16 Slot :
- 2 PCIe x16 slot with PCIe Gen 4 x8 signal
- 3 PCIe x16 slot with PCIe Gen 3 x4 signal
|
| M.2 |
-1 M.2 Key B Socket (3042/3052/2280)
-1 M.2 Key E Socket (2230)
|
| Graphics | |
| Graphics Processor | Intel® UHD Graphics P750/750 supports Intel® Iris® Xe Graphics architecture |
| Interface |
Up to 7 independent displays :
-3 DisplayPort : Up to 4096 x 2304 @60Hz
-By requested Graphics Card
|
| Storage | |
| SATA | 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10 |
| M.2 |
-1 M.2 Key M Socket (2280, PCIe x4)
-1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
|
| Storage Device |
-4 Front-access 2.5"SSD/HDD Tray
-1 M.2 Key M Socket
|
| Audio | |
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT |
| LAN 2 | Intel® I225IT 2.5G LAN |
| Power | |
| Power Input | 9V to 55V, DC-in |
| Power Interface | 4-pin Terminal Block : V+, V- |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Others | |
| TPM | Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 253.9mm x 215.8mm x 375.0mm (10.00" x 8.50" x 14.76") |
| Weight |
RCX-2750R PEG : 7.6 kg (16.75 lb)
RCX-2750 PEG : 7.3 kg (16.09 lb)
|
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temp. | -25°C to 60°C (-13°F to 147°F) |
| Storage Temp. | -25°C to 85°C (-13°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% @60°C |
| Shock/Vibration |
-IEC 61373 : 2010
-Railway Applications : Rolling Stock Equipment, Shock and
Vibration Tests
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
