- Ultra-performance NVIDIA® Jetson Thor™ with up to 2,070 FP4 TFLOPS AI performance
- 14-core Arm® Neoverse™ V3AE CPU and NVIDIA Blackwell™ GPU with 2,650 CUDA® cores and 96 Tensor Cores
- Up to 4× 10GigE, 2× 2.5GigE, 4× GigE LAN with PoE+, plus dual HDMI up to 8K
- Multiple 5G/4G/LTE/WiFi/BT/GPRS/UMTS wireless connections with dual SIM support
- Supports up to 16 GMSL 1/2 automotive cameras with Fakra-Z connectors
- 4 isolated CAN-FD, 2 COM RS-232/422/485, 4 USB 3.1, 16-bit isolated DIO
- Wide 9V–50V DC input, 16-mode software ignition control, and Allxon remote management

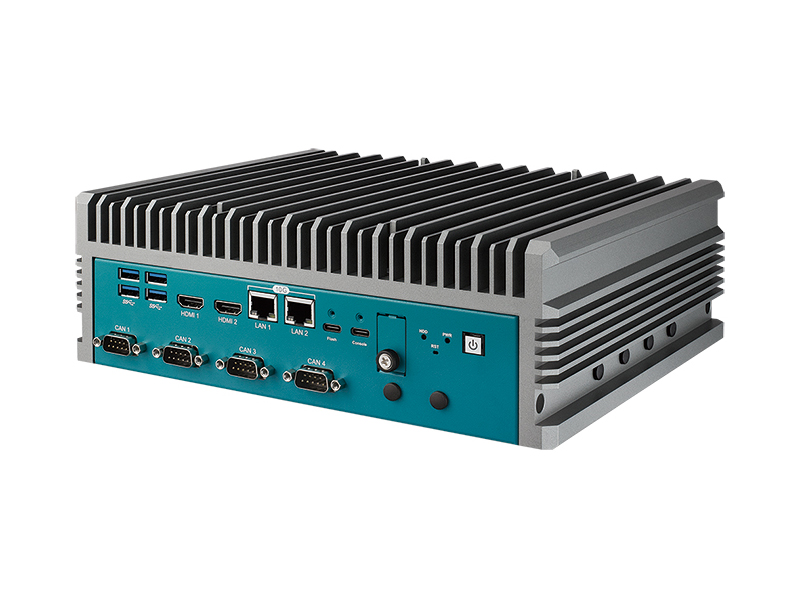

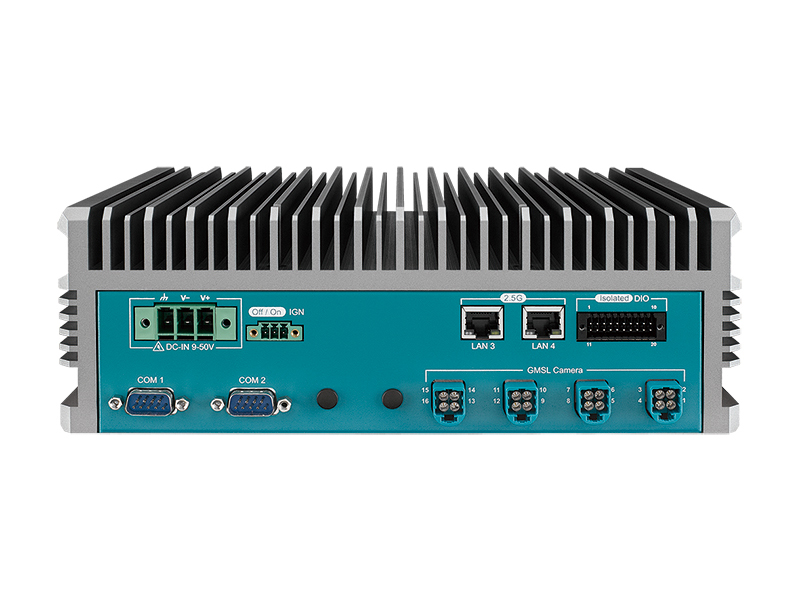

The EAC-7000 ultra-performance NVIDIA® Jetson Thor™ device delivers breakthrough AI compute of up to 2,070 FP4 TFLOPS. Powered by the advanced NVIDIA® Jetson T5000™ module with a 14-core Arm® Neoverse™ V3AE CPU and 2,650-core NVIDIA Blackwell™ GPU with 96 Tensor Cores, the EAC-7000 enables next-generation AI deployment at the edge. This EAC-7000 Series features extensive I/O, including support for up to 16 GMSL 1/2 automotive cameras, multiple 10GigE/2.5GigE/GigE LAN with PoE+, isolated CAN-FD, dual COM RS-232/422/485 ports, USB 3.1, and 16-bit isolated DIO—ideal for robotics, autonomous systems, and intelligent Edge AI applications.
| System | |
| CPU | EAC-7000-R128 : 14-core Arm® Neoverse™ V3AE 64-bit CPU |
| GPU | 2,650-core NVIDIA Blackwell™ GPU with 5th Gen 96 Tensor Cores |
| Memory | 256-bit LPDDR5X DRAM, up to 128GB |
| Software Support |
- Linux Ubuntu 24.04
- NVIDIA JetPack™ 7.0 SDK
|
| I/O Interface | |
| USB |
- 4 USB 3.1 Type-A
- 1 USB Type-C for console debug port
- 1 USB Type-C for OS flash port
|
| Serial | 2 COM RS-232/422/485 |
| CAN Bus | 4 isolated CAN-FD |
| DIO | 16-bit Isolated DIO (8 DI, 8 DO) |
| Button |
- 1 Power Button
- 1 Force Recovery Button
- 1 Reset Button
|
| LED | Power, SSD |
| SIM | 2 Nano SIM Card Socket |
| Antenna | 8 Antenna for 5G/WiFi/4G/LTE/GPRS/UMTS |
| Expansion | |
| M.2 |
- 1 M.2 Key B Socket for dual SIM (3042/3052, USB 3.0)
- 1 M.2 Key B Socket (3042/3052/2280, PCIe x2)
- 1 M.2 Key E Socket (2230/3042, PCIe x1/USB 2.0/UART3)
|
| Graphics | |
| Interface | 2 HDMI, up to 7680 × 4320 @30Hz |
| Video Encode |
- H.265: 6× 4Kp60, 12× 4Kp30, 24× 1080p60, 50× 1080p30
- H.264: 48× 1080p30, 6× 4Kp60
|
| Video Decode |
- H.265: 4× 8Kp30, 10× 4Kp60, 22× 4Kp30, 46× 1080p60, 92× 1080p30
- H.264: 82× 1080p30, 4× 4Kp60
|
| Camera | |
| GMSL | Supports up to 16 GMSL 1/2 automotive cameras with Fakra-Z connectors |
| Storage | |
| M.2 | 1 M.2 Key M Socket (2280, PCIe x4) |
| Ethernet | |
| LAN 1–2 | 2× 2.5GigE LAN RJ45 Connector (Intel i226) |
| LAN 3–4 | 2× 10GigE LAN RJ45 Connector (Marvell x3610) |
| LAN 5–8 | Up to 4 GigE LAN with PoE+ (IEEE 802.3at, 25.5W/48V per port) |
| Power | |
| Power Input | DC 9V to 50V |
| Power Interface | 3-pin Terminal Block: V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Remote Switch Terminal Block |
| Optional Modules | |
| Sensors / Security |
- 3-axis accelerometer and 3-axis gyroscope (I2C)
- 3-axis magnetometer (I2C)
- Absolute barometric pressure sensor (I2C)
- TPM 2.0 (STMicroelectronics ST33KTPM2I)
- Out-of-band management (Nuvoton NUC980)
|
| Mechanical | |
| Dimensions | 260 mm × 215 mm × 88 mm (10.24" × 8.46" × 3.46") |
| Weight | 5.5 kg (12.13 lb) |
| Mounting | Wallmount |
| Environment | |
| Operating Temperature |
77W TDP Mode Fanless: -20°C to 45°C (-4°F to 113°F) with 0.63 m/s airflow
77W TDP Mode Fan: -20°C to 70°C (-4°F to 158°F)
130W TDP Mode Fan: -20°C to 50°C (-4°F to 122°F)
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 70°C |
| Shock | Operating, MIL-STD-810H, Method 516.8, Procedure I |
| Vibration | Operating, MIL-STD-810H, Method 514.8, Procedure I, Category 4 |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
