- 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
- 4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC)
- 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
- Rugged & Fanless design, -40°C to 75°C operating temperature
- Multiple DVI-I and DisplayPort display interface, up to 3 independent HD displays
- 2 independent GigE LAN, iAMT 12.0 supported
- 2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
- 4 front-access 2.5" SSD trays, RAID 0, 1, 5, 10 supported
- 3 PCI/PCIe slots, max 300W Power Budget for independent graphics operation
- 32 Isolated DIO, 4 COM RS-232/422/485
- 2 M.2 sockets : 1 M.2 Key M, 1 M.2 Key E
- 6V to 36V DC Power Input with 80V Surge Protection
- Configurable Ignition Power Control

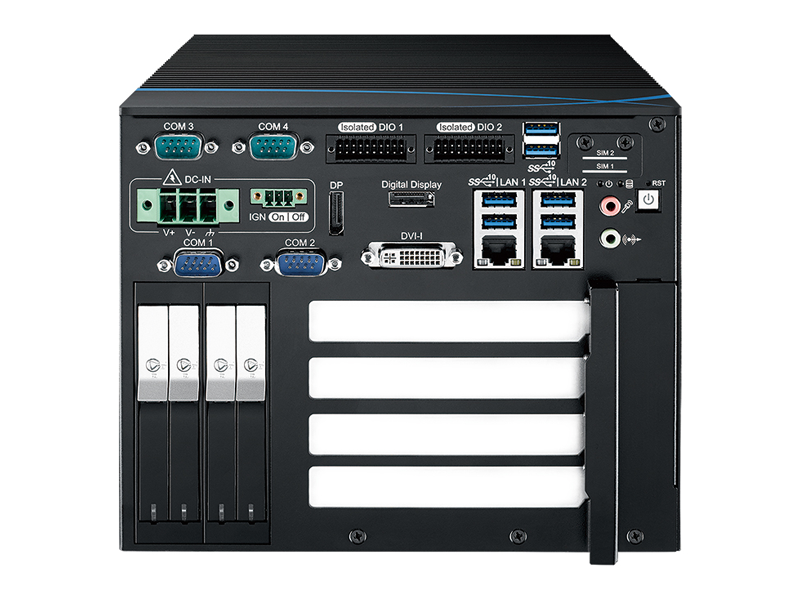

Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, 2 GigE LAN support iAMT 12.0, multiple PCI/PCIe expansion slots, 4 front-access SSD trays, 2 SIM sockets, 6 USB 3.1 Gen 2 sockets, 2 M.2 slots, 4 COM RS-232/422/485, 32 Isolated DIO, rugged, high-performance, flexible, expandable, max 300W power budget for independent graphics operation, Fanless -40°C to 75°C operating temperature, the Rugged Science RCX-1400 Fanless Robust Computing System is your rugged solution for Machine Vision, Deep Learning, Robotic Control, Intelligent Surveillance, Factory Automation and any performace-driven embedded applications in harsh environments.
Model Name | GigE LAN | PCIe x16 | PCIe x8 | PCIex4 | PCIe x1 | PCI | SSD Tray | COM | USB 3.1 | SIM | Isolated DIO |
|---|---|---|---|---|---|---|---|---|---|---|---|
RCX-1430FR | 2 | 1 | NA | 1 | 1 | NA | 4 | 4 | 6 | 2 | Y |
RCX-1430F | 2 | 1 | NA | 1 | 1 | NA | NA | 4 | 6 | 2 | Y |
RCX-1421FR | 2 | 1 | NA | 1 | NA | 1 | 4 | 4 | 6 | 2 | Y |
RCX-1421F | 2 | 1 | NA | 1 | NA | 1 | NA | 4 | 6 | 2 | Y |
RCX-1412FR | 2 | 1 | NA | NA | NA | 2 | 4 | 4 | 6 | 2 | Y |
RCX-1412F | 2 | 1 | NA | NA | NA | 2 | NA | 4 | 6 | 2 | Y |
RCX-1440R | 2 | NA | 1 | 3 | NA | NA | 4 | 4 | 6 | 2 | Y |
RCX-1440 | 2 | NA | 1 | 3 | NA | NA | NA | 4 | 6 | 2 | Y |
RCX-1422R | 2 | 1 | NA | 1 | NA | 2 | 4 | 4 | 6 | 2 | Y |
RCX-1422 | 2 | 1 | NA | 1 | NA | 2 | NA | 4 | 6 | 2 | Y |
RCX-1404R | 2 | NA | NA | NA | NA | 4 | 4 | 4 | 6 | 2 | Y |
RCX-1404 | 2 | NA | NA | NA | NA | 4 | NA | 4 | 6 | 2 | Y |
RCX-1220A | 2 | NA | 2 | NA | NA | NA | NA | 4 | 6 | 2 | Y |
RCX-1220 | 2 | 1 | NA | 1 | NA | NA | NA | 4 | 6 | 2 | Y |
RCX-1211 | 2 | 1 | NA | NA | NA | 1 | NA | 4 | 6 | 2 | Y |
| System | |
| Processor | 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S) |
| Chipset | Intel® C246 chipset |
| BIOS | AMI |
| SIO | IT8786E |
| Memory4 | 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC) |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB |
- 6 USB 3.1 Gen 2 (External)
- 1 USB 2.0 (Internal) |
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD, wireless |
| SIM Card | 2 external SIM sockets |
| Expansion | |
| Mini PCIe | 2 Full-size Mini PCIe sockets for PCIe/USB/external SIM/mSATA |
| PCI/PCIe | 3 PCI/PCIe expansion slots |
| M.2 | 1 M.2 Key E socket |
| Graphics | |
| Graphics Processor | Intel® UHD Graphics 630 |
| Interface |
- 1 DVI-I : Up to 1920 x 1080 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
|
| Storage | |
| SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| mSATA | 2 SATA III (Mini PCIe type, 6Gbps) |
| Storage Ddevice |
- 1 M.2 Key M socket
- 4 front-access 2.5" SSD/HDD trays
|
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0 |
| LAN 2 | Intel® I210 GigE LAN |
| Power | |
| Power Input | 6V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension |
330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
|
| Weight |
5.3 kg (11.7 lb)
|
| Mounting |
Wallmount by mounting bracket
|
| Environment | |
| Operating Temperature |
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 75°C |
| Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
