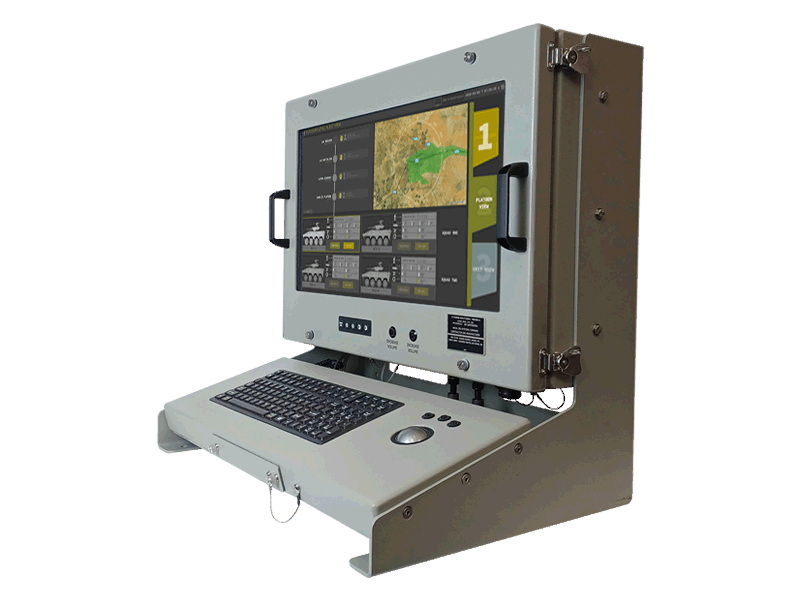

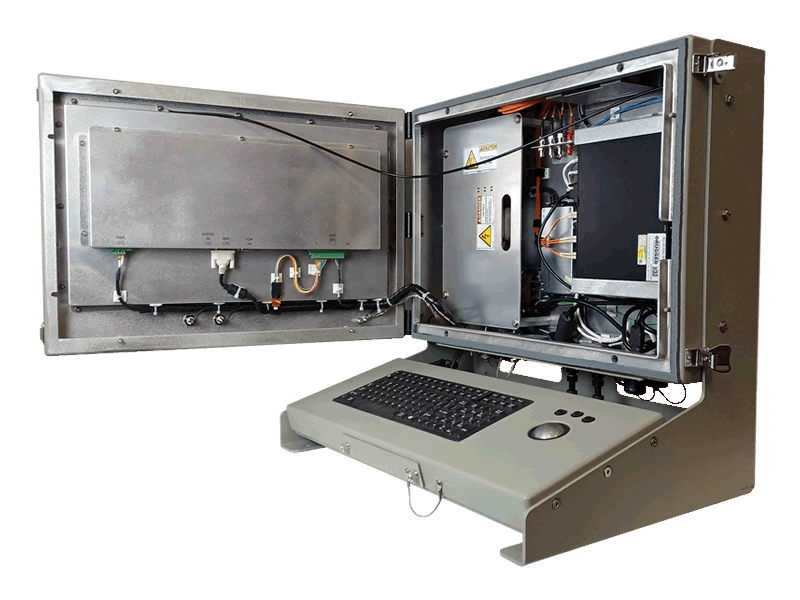

The 24” MILCORTEX OIP, Operator Interface Panel, is designed for tough environments, and feature an innovative and cost-effective “box-in-box” design. The OIP is powered by a Rugged Science MILCORTEX Series Embedded Computer, which is internally mounted within the OIP enclosure. This “box-in-box” design keeps price and obsolescence issues in check.

The MILCORTEX Series embedded computer is powered by Intel® Xeon Core i7/ i5/ i3/ Skylake/Kaby Lake processors and a maximum 32Gb RAM. They come with 2 Copper LANs standard and can be configured for 2 Fiber Ethernet LANs (optional).

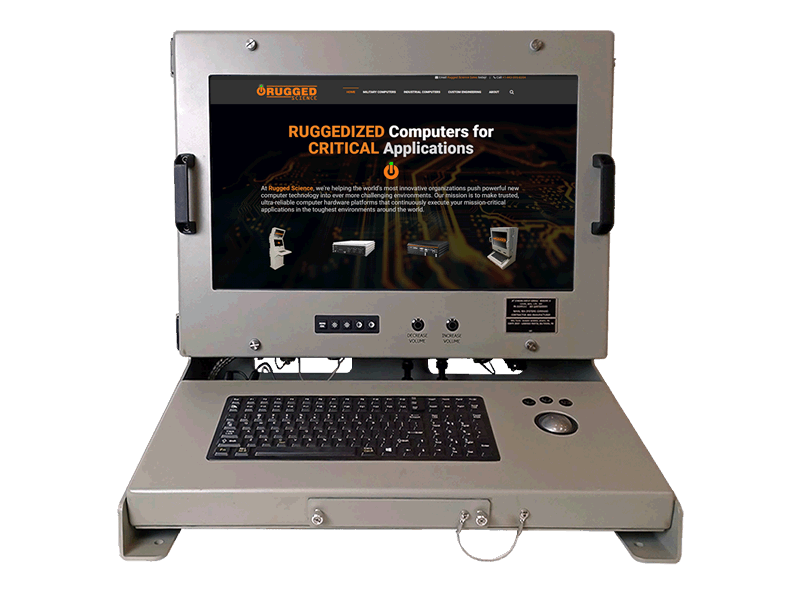

The aluminum chassis of the 24” MILCORTEX OIP doubles as a heat sink to passively disperse heat to the ambient environment. The 24” MILCORTEX Operator Interface Panel features a 24” LED backlit display with 1920 x 1080 resolution, a 16:9 aspect ratio, and 300 nits standard brightness for a clear and sharp display. An AC power connector kit is available.



Model

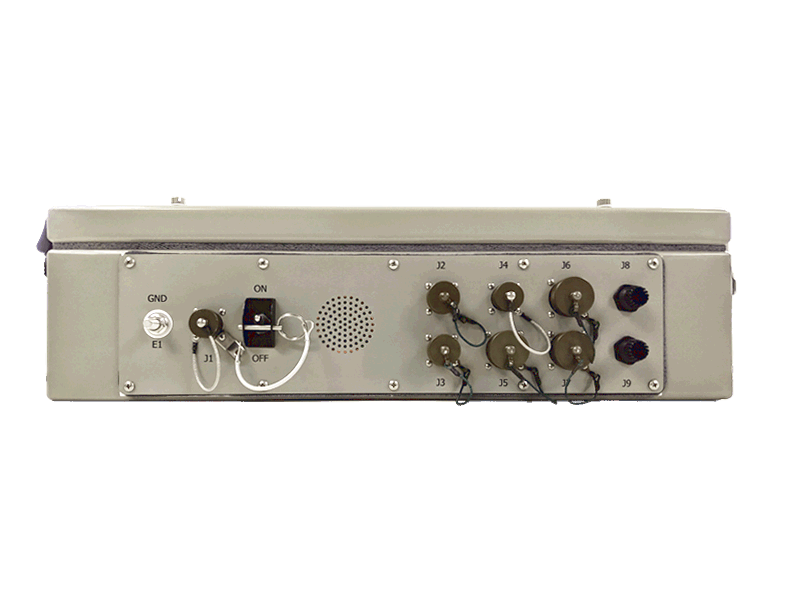

External Copper Ports

Fiber Ports

USB

SSD

Keyboard

Speaker

Power

Night Vision

Mounting

Speaker

Isolated DIO

OIP-24MC3001

3x

2x

1

2

Yes

Yes

Dual Redundant

No

Bulkhead

Yes

NA

OIP-24MC3002

3x

2x

1

2

Yes

Yes

Dual Redundant

Yes

Bulkhead

Yes

NA

OIP-24MC3003

3x

2x

1

2

Yes

Yes

Dual Redundant

No

Table

Yes

NA

OIP-24MC3004

3x

2x

2

2

No

Yes

Single

No

Bulkhead

Yes

32

Processor No.

TDP

Cache

Max. Frequency

Embedded

Intel® Xeon® E3-1275 v6

80W

8M

Up to 4.20 GHz

Y

Intel® Xeon® E3-1275 v5

80W

8M

Up to 4.00 GHz

Y

Intel® Xeon® E3-1225 v5

80W

8M

Up to 3.70 GHz

Y

Intel® Xeon® E3-1268 v5

35W

8M

Up to 3.40 GHz

Y

Intel® Core™ i7-7700

65W

8M

Up to 4.20 GHz

Y

Intel® Core™ i7-7700T

35W

8M

Up to 3.80 GHz

Y

Intel® Core™ i7-6700

65W

8M

Up to 4.00 GHz

Y

Intel® Core™ i7-6700TE (*Mil-qualified)

35W

8M

Up to 3.40 GHz

Y

Intel® Core™ i5-7500

65W

6M

Up to 3.80 GHz

Y

Intel® Core™ i5-7500T

35W

6M

Up to 3.30 GHz

Y

Intel® Core™ i5-6500

65W

6M

Up to 3.60 GHz

Y

Intel® Core™ i5-6500TE

35W

6M

Up to 3.30 GHz

Y

Intel® Core™ i3-7101E

65W

3M

Up to 3.90 GHz

Y

Intel® Core™ i3-7101TE

35W

3M

Up to 3.40 GHz

Y

Intel® Core™ i3-6100

65W

4M

Up to 3.70 GHz

Y

Intel® Core™ i3-6100TE

35W

4M

Up to 2.70 GHz

Y

System
Internal Embedded Computer Rugged Science MILCORTEX 3000 Series
Processor Quad-Core Intel® Xeon®/Core™ i7/i5/i3 CPUs (Skylake/Kaby Lake)
Chipset Intel® C236
Memory 2x DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
External I/O Configurable to match embedded computer I/O
Inline Mouse
Sealed USB inline pointing device on front bezel
OSD Brightness Control 34-button control and OSD menu
Ethernet
Fiber LAN
100 BAse FX Fiber LAN via ST connector
(Fiber Gigabit Ethernet option also available)
Graphics & Video
Display Size
24" diagonal viewing area, 5W resistive touch w/ 2.8mm glass
Resolution
1920 x 1080
Aspect Ratio 16:9
Backlight LED backlit
Brightness
300 nits
Colors 16.7M Colors (24bit)
Contrast Ratio 5000:1
Storage
SATA (2) SATA III (6Gbps)
mSATA SATA III (Mini PCIe Type, 6Gbps)
Expansion
SUMIT (2) SATA III (6Gbps)
Mini PCIe SATA III (Mini PCIe Type, 6Gbps)
Power
Input Voltage SUMIT A&B Connector
Protection (2) mini PCIe
Audio
Codec Realtek ALC892, 5.1 channel HD audio with 93 dB speaker
Line-out, Mic-in, Front audio header
Mechanical
Size (W x D x H) 648mm x 180mm x 457mm (25.5" x 7.09" x 18")
Weight 43.3 lbs. (without bracket) 49.1 lbs. (with bracket)
Design
Aluminum chassis and enclosure
Environmental
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity 0% to 95% Humidity
Additional
Trusted Mobile Platform Infineon SLB9635, LPC Interface (Optional)
Watchdog Timer Reset: 1 to 255 sec/min Per Step
Designed to Meet
Shock MIL-STD-901D, Grade A
EMI MIL-STD-461G
Vibration MIL-STD-167-1A
Power MIL-STD-1399
AttachmentSize
PDF icon MILCORTEX_24 INCH_OIP_SPECSHEET.pdf976.53 KB
