- Military Grade Fanless Embedded Server
- Fanless | Operating Temp -10ºC to +50ºC
- Featuring Xeon D-1577 Server Class CPU
- 16 Cores | TDP 45W | 14nm | 24MB Cache
- 128 GByte DDR4 4-slot RDIMM ECC DRAM
- Storage support for 4x SATA III | 1x CFast
- 4x USB 3.0 | 2x USB 2.0 | 8x Digital I/O
- 2x Mini-PCIe Expansion Ports
- 8x SFP 10G Fiber or Copper Ethernet
- 4x SFP 10/100/1000 Fiber or Copper Ethernet
- 2x Copper GbE for BMC | PXE | Wake-on-LAN

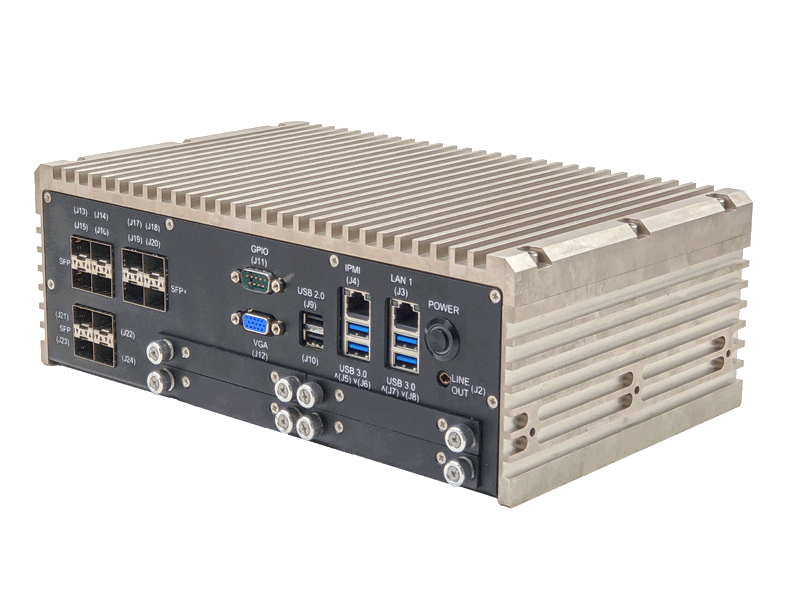

The MILEDGE 2100 is a small footprint, wide temperature (-10o to 50oC) server-grade embedded computer designed for rugged Hyper Converged Infrastructure (HCI) applications such as Virtualization Server, Terminal Server, On-Prem Private Hybrid Cloud, and Cyber Security IDS/IPS.
Equipped with a data center grade 16 Core Intel XEON D-1577 processor that supports 128GB DDR4 RAM, the MILEDGE 2100 brings the architectural innovations of the Intel® Xeon® Scalable platform to a system-on-a-chip (SoC) CPU for lower-power, high-density solutions,
integrating essential network, security and acceleration capabilities for over one teraflop of compact computing.

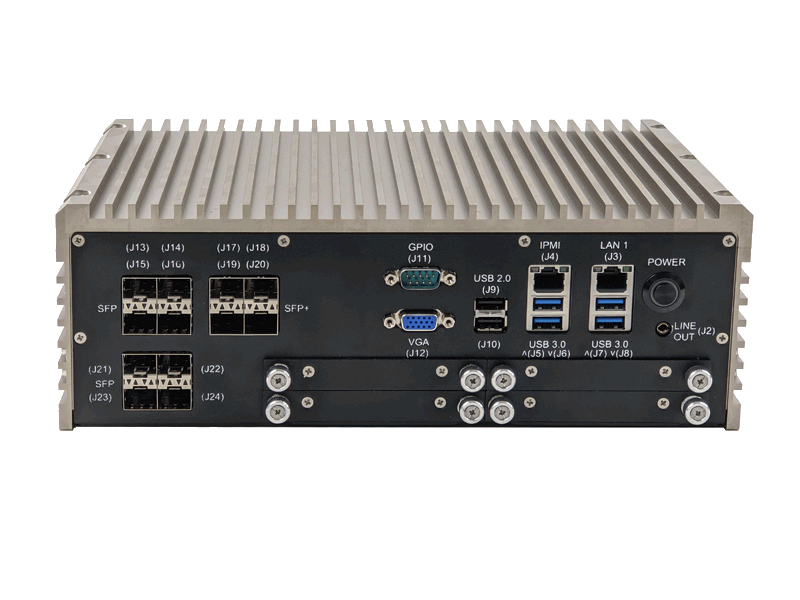

To support the server clustering requirements of a tactical hybrid cloud on the edge, the MILEDGE 2100 supports up to 4x 10GbE SFP+ ports (supporting both Copper/Fiber SFP+ transceivers) and 2x GbE Copper ports (1x IPMI, 1x Wake On LAN, PXE)
The MILEDGE 2100 provides an additional 8x 1GbE ports, which supports virtualization and terminal server applications. Flexible HCI storage requirements are supported with 4x SATA III SSD drive connections with user accessible thumbscrew 2.5” drive trays. The
RAID Host Controller supports RAID 0,1,10 configurations.
The MILEDGE 2100 is the Embedded Server you are looking for to include in your next generation HCI application on the Edge.
Model | Copper Ports | 1G Fiber Ports | 10G Fiber Ports | USB | SSD | GPIO |
|---|---|---|---|---|---|---|
RES-ME2100 | 2x RJ45 | 8x 1G SFP | 4x 10G SFP | 6 | 4 | 16 |
| System | |
| Processor | Xeon D-1577/16 Cores/TDP 45W (24MB Cache) |
| Lithography | 14nm Broadwell DE |
| BIOS | AMI EFI BIOS |
| IPMI/BMC Management/td> | 1x GbE port with IPMI 2.0 support iKVM 2.0 |
| Memory | Maximum 128GB ECC LRDIMM |
| Storage | |
| SATA III | 4x SATA Gen 3 (6.0 Gb/s) |
| CFast | 1x CFast Ejector |
| RAID | RAID Host Controller support RAID 0, 1, 10 |
| I/O Interface | |
| Serial | Support for 4x COM connected via LPC bus |
| USB | 4x USB 3.0 (External) 2x USB 2.0 (External) | 2x USB 2.0 (Internal) |
| Isolated DIO | 8x Isolated DIO: 4 DI, 4 DO |
| Expansion | |
| Mini PCIe | 2x Mini-PCIe Sockets |
| Graphics & Video | |
| Processor | AST 2400 |
| Interface | 1x VGA |
| Resolution | 1920x1200 @ 60Hz |
| Ethernet | |
| LAN 10G SFP+ | 4x 10G SFP+ Ports for Fiber or Copper SFP+ Module |
| LAN SFP | 8x 10/100/1000 SFP Module |
| LAN Copper | 2x 10/100/1000 Copper Ports |
| Power | |

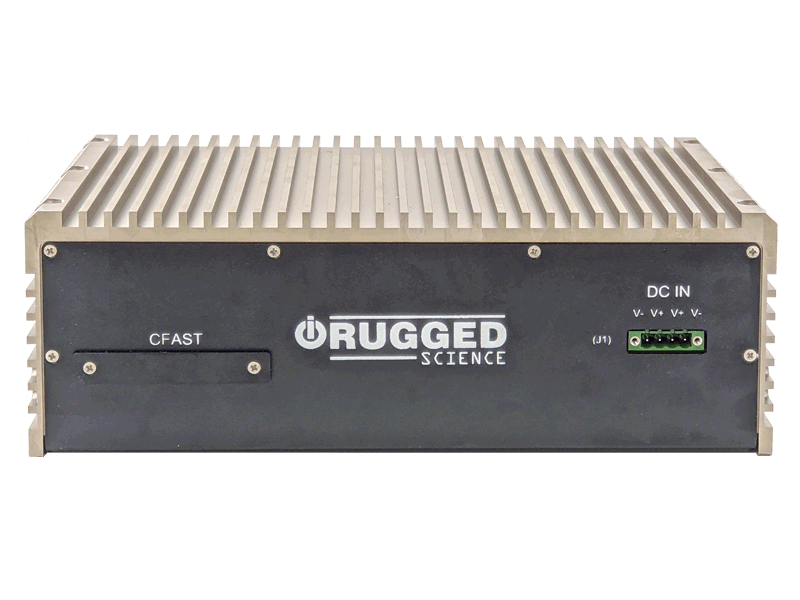

| Power Input | 12V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block: V+, V-, Frame Ground |
| Additional Features | |
| Cyber Security | Infineon SLB9665 Trusted Platform Module (TPM) 2.0 |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported iManager 2.0-CPU throttling, thermal shutdown (Intel PECI) (from EC ITE8528) |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats via IPMI BMC |
| Mechanical | |
| Dimensions (LxWxH) | 292mm x 178mm x 102mm | 11.5" x 7" x 4" |
| Weight | 18 lbs (Average) |
| Mounting | Wallmount by mounting bracket 2U Rackmount (Optional) |
| Environmental | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 85°C |
| Humidity | 5% to 95% Humidity, non-condensing |
| Shock (Designed to Meet) | MIL-S-901D Grade A, Class 1, Type A |
| EMI (Designed to Meet) | MIL-STD-461F |
| Vibration (Designed to Meet) | MIL-STD-167-1, Type 1, 4-33Hz |
| Environmental (Designed to Meet) | MIL-STD-810G |
| Attachment | Size |
|---|---|
 MilEdge 2100 Data Sheet | 1.64 MB |
